Agitator

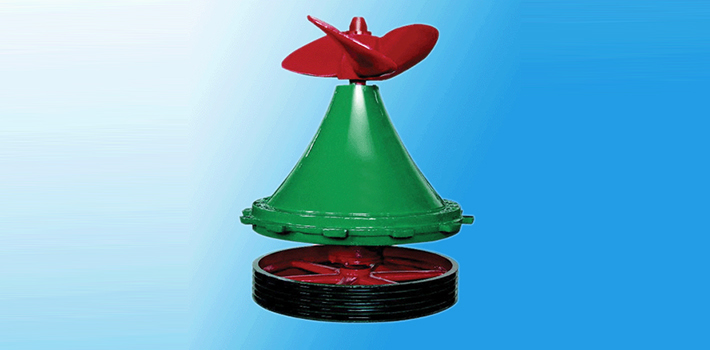

, LXT SeriesHuaxia, as a specialist pulp machine designer and manufacturer, provides specificpulp mixing solutions for a wide range of main processes in the pulp and paper industry. The LXT series agitator, also called the pulp mixer, is ideally used in the pulp and paper industry for mixing and agitating pulps. It is suitable for use in a 15-100m³ round or square chest to mix pulp with a consistency of less than 5%.
The pulp agitator ensures a homogenous mixing result, high process reliability, high efficiency, low cost, small floor space, easy maintenance and a low environmental stress. Motor power can be properly increased to enhance the pulp consistency and useable range of the pulp chest.
Technical Parameters of the Agitator| No. | Item | Unit | ||||
| 1 | Chest volume | m3 | 15-30 | 40-60 | 60-80 | 80-100 |
| 2 | Pulp consistency | % | ≤5 | ≤5 | ≤5 | ≤5 |
| 3 | Diameter of rotor | mm | Φ500 | Φ700 | Φ750 | Φ1000 |
| 4 | Rotor speed | r/min | 300 | 240 | 220 | 180 |
| 5 | Motor model | Y160M-6 | Y160L-6 | Y180L-6 | Y200L2-6 | |
| 6 | Motor power | KW | 7.5 | 11 | 15 | 22 |
| 7 | Motor speed | r/min | 970 | 970 | 970 | 970 |
| 8 | V-belt model | pieces | B2240/6 | B2240/6 | B2500/6 | B4500/6 |
| 9 | Weight | kg | 740 | 820 | 980 | 1500 |
