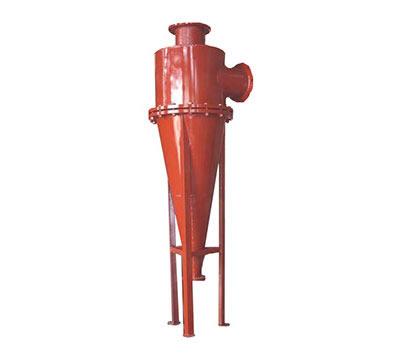

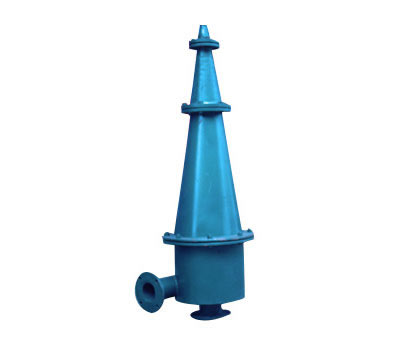

Low Density Cleaner

, KDC Series

Capacity: 4~20t/d
Huaxia's KDC series low density cleaner is a high quality and performance pulp detrasher. It is characterized by a small floor space, easy operation, high purification efficiency, wear and pressure resistance, and a long service life. For customers that need a detrashing system for purifying pulp with a low consistency, this series of pulp cleaners is an excellent choice.

Working Principle
According to specific gravity differences between fibers and impurities, the impurities can be separated from the pulp at the bottom of the cleaner under centrifugal force. The impurities and purified pulp will then be discharged separately from different ports.

Technical Parameters of the Low Density Cleaner
Model KDC-606 KDC-270 KDC-350 KDC-610 KDC-650 KDC-800
Pulp consistency % 0.3-0.7 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Inlet pressure kg/cm2 3 2.5-3 2-2.5 2-2.5 3 3
Capacity (t/d) 4~5 5~6 6~8 8~10 12~15 18~20
