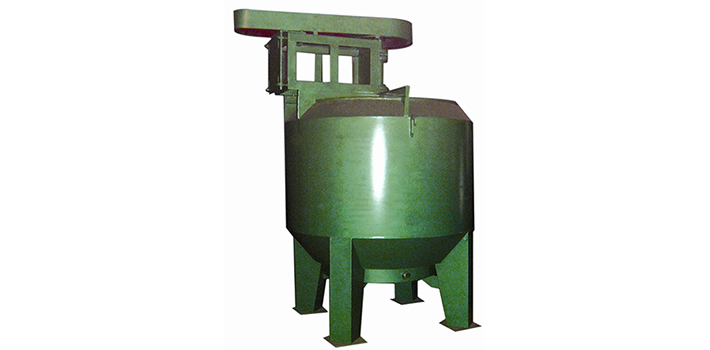

Under a high consistency, this pulper can achieve a rapid waste paper disintegration and deinking. Due to its large production capacity, low energy consumption, steam and chemical economy, easy maintenance, long service life, low noise, small vibration and stable operation, it saves up to 50% in water and energy.
Technical Parameters of High Consistency PulperModel | ||||||||
Effective volume (m2) | 1 | 2 | 3 | 5 | 8 | 10 | 15 | |
Capacity (t/d) | 3-4 | 6-8 | 9-12 | 15-20 | 24-32 | 30-45 | 40-80 | |
Consistency (%) | 8~15% | |||||||
Tank diameter (mm) | 1200 | 1550 | 1800 | 2200 | 2500 | 2800 | 3500 | |
Impeller diameter (mm) | 440 | 440 | 680 | 720 | 820 | 860 | 1050 | |
Impeller speed (r/min) | 440 | 440 | 400 | 380 | 340 | 320 | 280 | |
Pulp outlet diameter (mm) | 108 | 159 | 219 | 219 | 219 | 250 | 250 | |
Dilution port diameter (mm) | 50 | 89 | 89 | 89 | 108 | 108 | 108 | |
ZGS Energy efficient HC hydrapulper | Model | Y160L-6 | Y180L-6 | Y200L 2 -6 | Y225M-6 | Y280S-6 | Y280M-6 | Y315S-6 |
Power (Kw) | 11 | 15 | 22 | 30 | 45 | 55 | 75 |
